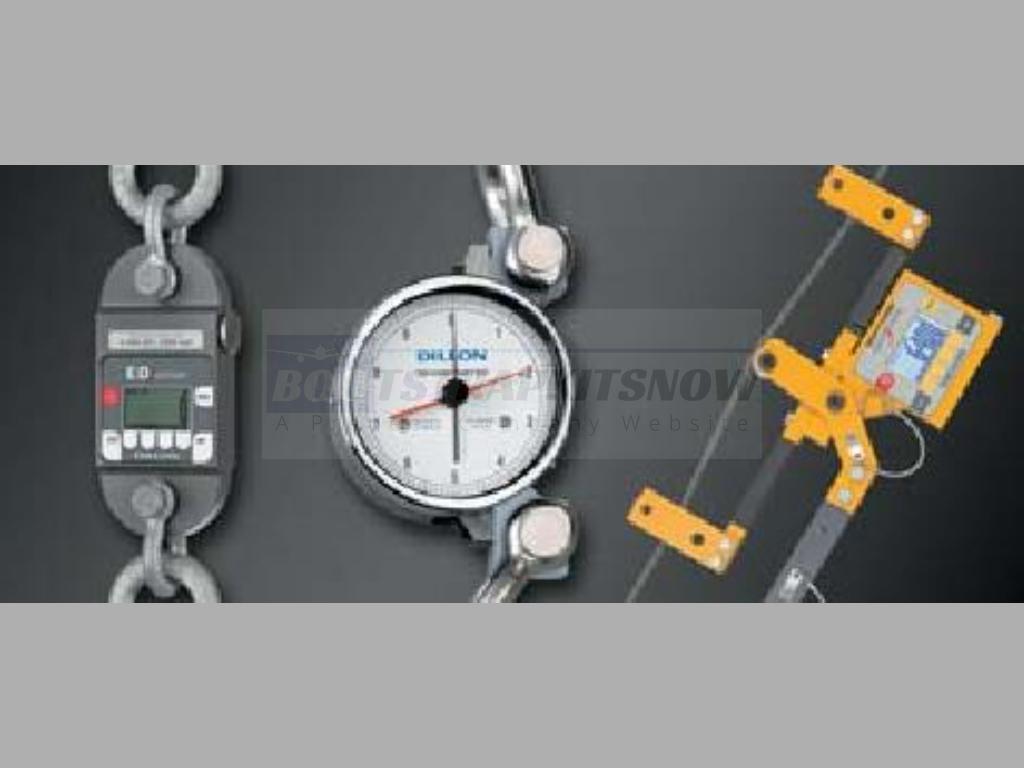

Dynamometers

Dynamometer

 Preneet can provide Dillion dynamometers as well as repair and calibrate Dillion dynamometers

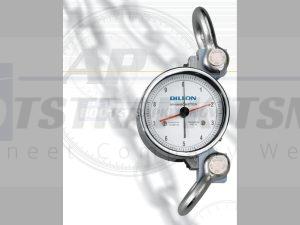

AP Dynamometer

Originally designed to measure the tension on telephone wires, the Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for such diverse jobs as suspended weighing, mounting cables for bridges, adjusting tension on guy wires, field testing chain, rope, wire—anything requiring precision force or tension measurement.

Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications:

The pounding aboard military vehicles and rough handling in field measurements. Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.

Features

  • Accuracy: ± 0.5% of full scale capacity for precise data.
  • Broadest range of capacities and resolutions are certain to fit your needs.
  • Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
  • Large safety factor for overload protection and long life.
  • No batteries required.
  • Dial size choice for the best in portability or visibility.
  • Anti-parallax dial and pointer produce accurate readings from any perspective.
  • Maximum hand retains peak load point and is easily reset.
  • Zero control cancels preset loads (backside).
  • High strength case resists heavy blows.
  • Generous shackle openings mate with most hooks and hardware.
  • High specification materials on all load components. Heat treated to tight tolerances.
  • Durable powder coat paint provides outstanding protection.
  • Offset load beam eases tension measurement.
  • Approvals: CE on all capacities excluding 50K.
AP Dynamometer
AP Dynamometer

Specifications

  • Pound Capacities

5" (125 mm) Dial Size

LOW

Part Number Cap x Division Size
30006-0019
500 x 5
30006-0027
1,000 x 10
30006-0035
2,000 x 20
30006-0043
4,000 x 25
30006-0050
5,000 x 50
30006-0076
8,000 x 50
30006-0084
10,000 x 100

Medium

Part Number Cap x Division Size
30006-0092
15,000 x 100
30006-0100
20,000 x 200

High

Part Number Cap x Division Size
N/A
N/A

10" (250 mm) Dial Size

LOW

Part Number Cap x Division Size
N/A
30007-0026
1,000 x 5
30007-0034
2,000 x 10
N/A
30007-0059
5000 x 20
N/A
30007-0083
10,000 x 50

Medium

Part Number Cap x Division Size
N/A
30007-0109
20,000 x 100

High

Part Number Cap x Division Size
30784-0017
30,000 x 200
30784-0033
50,000 x 200*

LOW

Ultimate Safety Factor
5:1
5:1
5:1
5:1
5:1

5:1

Medium

Ultimate Safety Factor

5:1

High

Ultimate Safety Factor
5:1
3:1

5" (125 mm) Dial Size

10" (250 mm) Dial Size

Ultimate Safety Factor

Low

Part Number Cap x Division Size
30006-0019
500 x 5
30006-0027
1,000 x 10
30006-0035
2,000 x 20
30006-0043
4,000 x 25
30006-0050
5,000 x 50
30006-0076
8,000 x 50
30006-0084
10,000 x 100
Part Number Cap x Division Size
N/A
30007-0026
1,000 x 5
30007-0034
2,000 x 10
N/A
30007-0059
5000 x 20
N/A
30007-0083
10,000 x 50
Ultimate Safety Factor
5:1
5:1
5:1
5:1
5:1

5:1

Med

Part Number Cap x Division Size
30006-0092
15,000 x 100
30006-0100
20,000 x 200
Part Number Cap x Division Size
N/A
30007-0109
20,000 x 100
Ultimate Safety Factor

5:1

High

Part Number Cap x Division Size
N/A
N/A
Part Number Cap x Division Size
30784-0017
30,000 x 200
30784-0033
50,000 x 200*
Ultimate Safety Factor
5:1
3:1

* Not CE approved.

  • Kilogram Capacities

5" (125 mm) Dial Size

10" (250 mm) Dial Size

Ultimate Safety Factor

Low

Part Number Cap x Division Size
30006-0134
500 x 5
30006-0159
1,000 x 10
30006-0126
2,000 x 20
30006-0167
4,000 x 25
N/A
Part Number Cap x Division Size
N/A
30007-0158
1,000 x 5
30007-0125
2,000 x 10
N/A
30007-0174
5000 x 20
Ultimate Safety Factor

5:1
5:1
5:1
5:1

Med

Part Number Cap x Division Size
30006-0118
10,000 x 100
Part Number Cap x Division Size
30007-0117
10,000 x 50
Ultimate Safety Factor
5:1

High

Part Number Cap x Division Size
N/A
Part Number Cap x Division Size
30784-0058
20,000 x 100
Ultimate Safety Factor
4:1

5" (125 mm) Dial Size

LOW

Part Number Cap x Division Size
30006-0134
500 x 5
30006-0159
1,000 x 10
30006-0126
2,000 x 20
30006-0167
4,000 x 25
N/A

Medium

Part Number Cap x Division Size
30006-0118
10,000 x 100

High

Part Number Cap x Division Size
N/A

10" (250 mm) Dial Size

LOW

Part Number Cap x Division Size
N/A
30007-0158
1,000 x 5
30007-0125
2,000 x 10
N/A
30007-0174
5000 x 20

Medium

Part Number Cap x Division Size
30007-0117
10,000 x 50

High

Part Number Cap x Division Size
30784-0058
20,000 x 100

LOW

Ultimate Safety Factor

5:1
5:1
5:1
5:1

Medium

Ultimate Safety Factor
5:1

High

Ultimate Safety Factor
4:1

Swipe right to see more Images

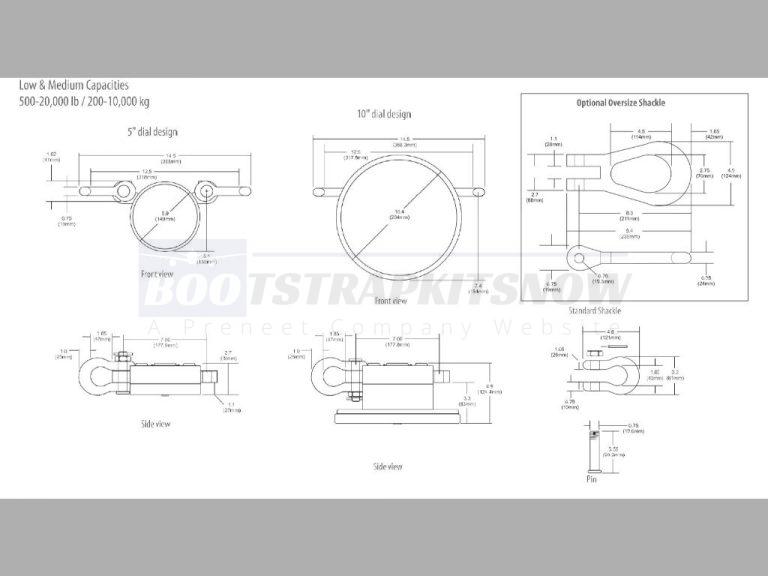

Low and Medium Capacities
Low and Medium Capacities

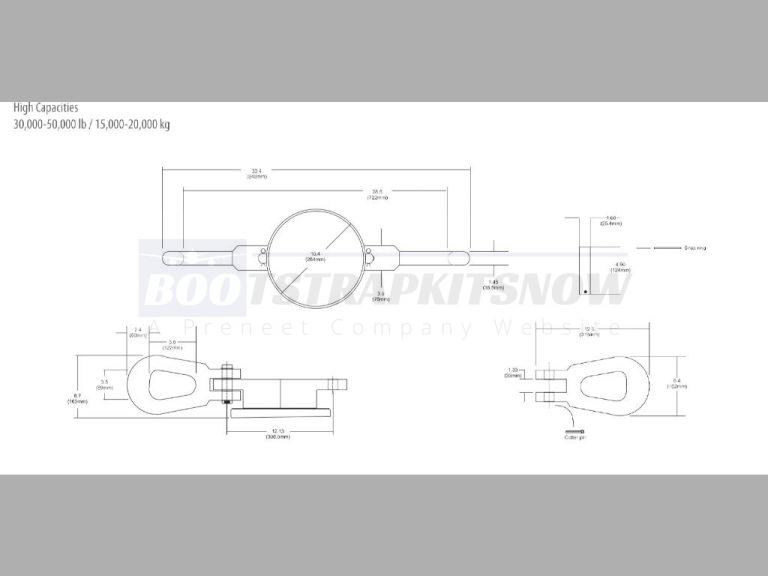

High Capacities
High Capacities

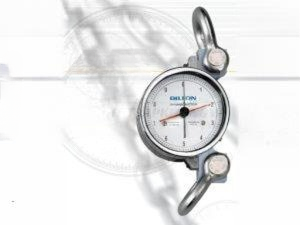

Model AP Mechanical Dynamometer

  • Accuracy: + 0.5% of capacity
  • Temperature Range: -50° to 140° F (-45° to 60° C)
  • Ultimate Safety Factor: See table on cover for minimum USF
  • Construction:
    Pressure bar— High-grade E4340 alloy steel or 7075-T651 aluminum Shackles – A4140 forged steel (machined from E4340 steel)
    Shackle pins – Machined from E4340 steel or 300 m steel
  • Case Housing:
     5″ models are equipped with high strength composite plastic case.
    10″ models use cast aluminum enclosure.
  • Corrosion Protection: Pressure bar protected with durable powder coat paint. Shackles and pins are electroless nickel plated. All integral machining and fasteners are produced from noncorrosive materials or have suitable plating.
  • ZeroControl: Zero up to 20% of capacity. Zeroed load must be considered as part of ultimate load.
  • Calibration: Traceable to NIST.
  • Documentation: Includes users guide and signed calibration certificate.

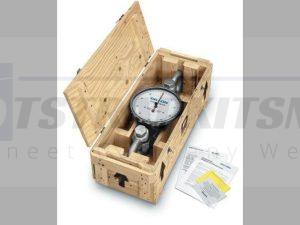

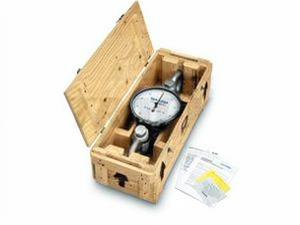

  • Carry Case/Crate:
    Low/Med capacity 5″ dial – includes plastic carry case

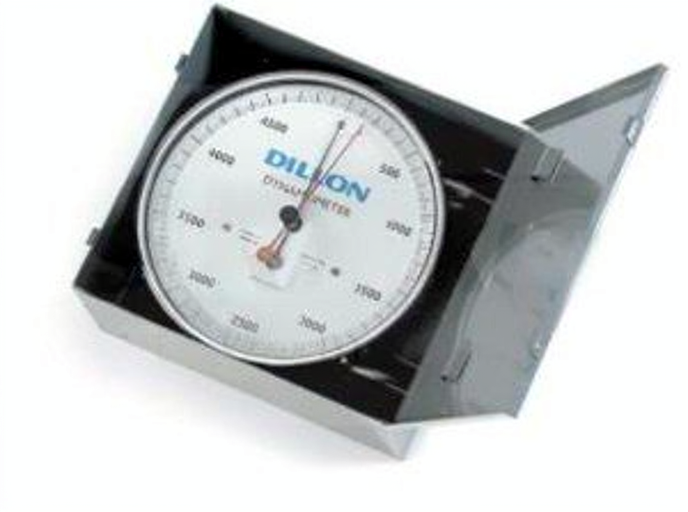

    Low/Med capacity 10″ dial – optional steel carry case

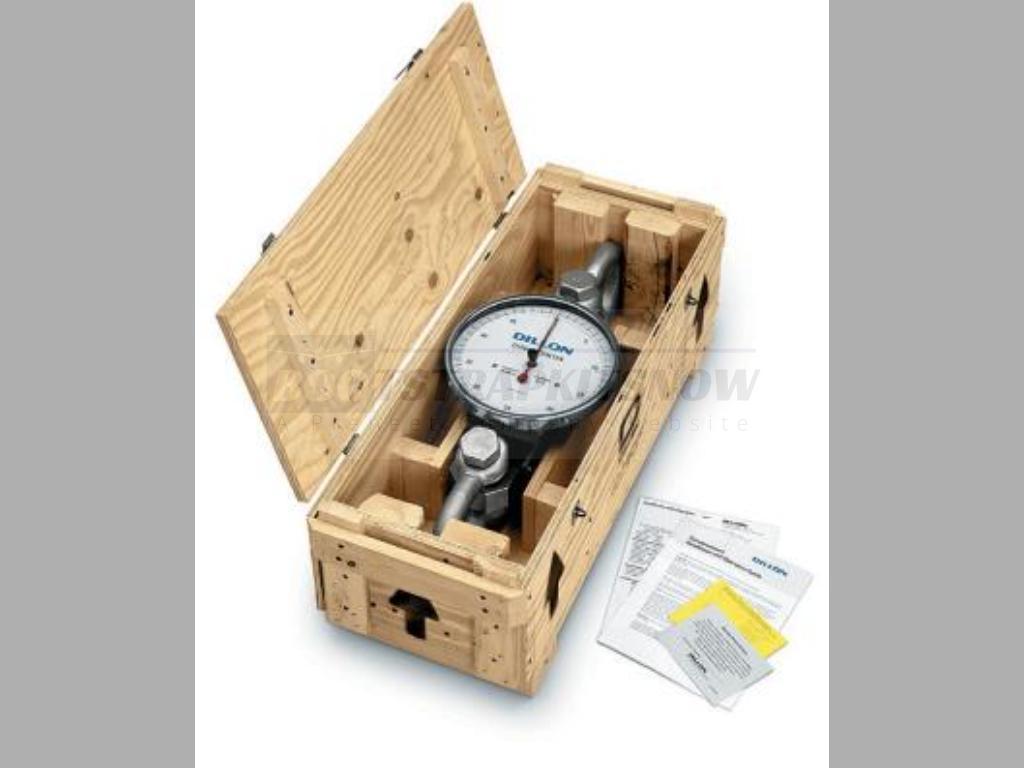

    All high capacity – includes reinforced plywood crate
  • Periodic Proof Loads: Controlled 150% proof loads permitted annually.
  • Approval: CE on all capacities excluding 50,000 lb ASME b30.26 compliant on 20,000 lb (10,000 kg) and below.
  • Warranty: 2 years parts and labor.
  • Shipping and packing (approximate weights):
    5″ Low and Med Capacities
    Net weight 9 lb
    Shipping weight 15 lb
    Shipping box 16″ x 11″ x 7″
    10″ Low and Med Capacities
    Net weight 10 lb
    Shipping weight 16 lb
    Shipping weight (with optional steel case) 26 lb
    Shipping box 14″ x 14″ x 7″
    30,000 – 50,000 lb (20,000 kg) High Capacity
    Net weight 64 lb
    Shipping weight 98 lb
    Shipping crate 37.5″ x 13″ x 10.5″

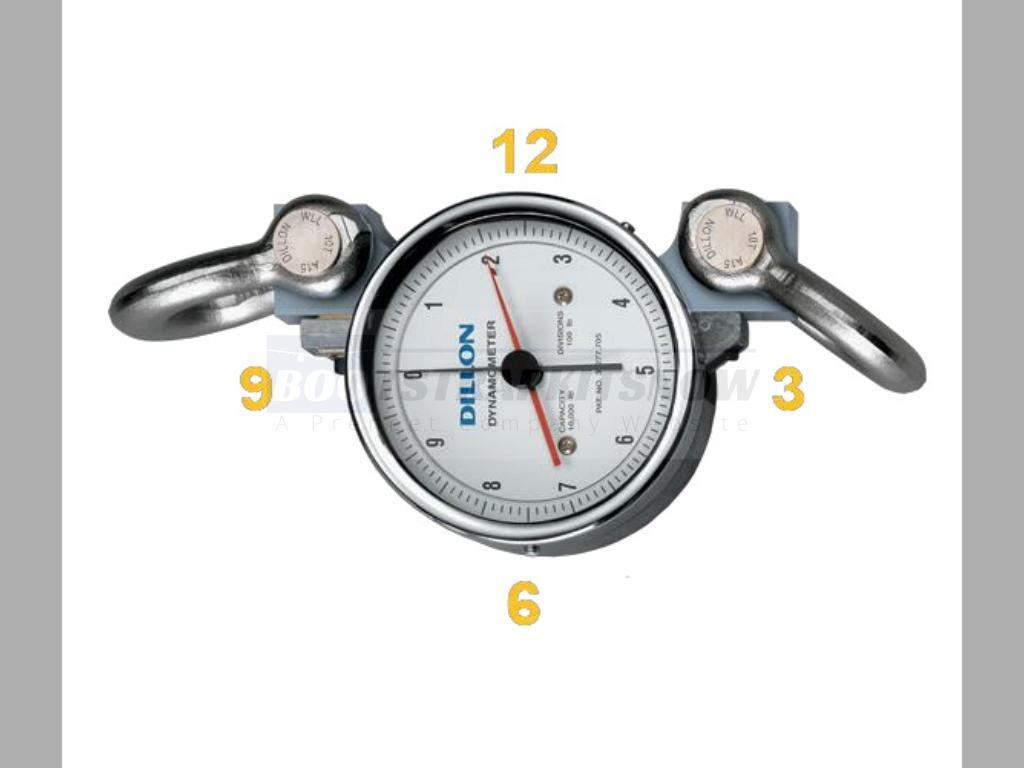

  • Standard Zero positioning:The standard zero position is 9 o’clock for both the 5″ and 10″ dial sizes.

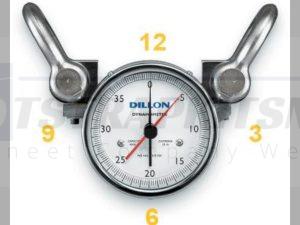

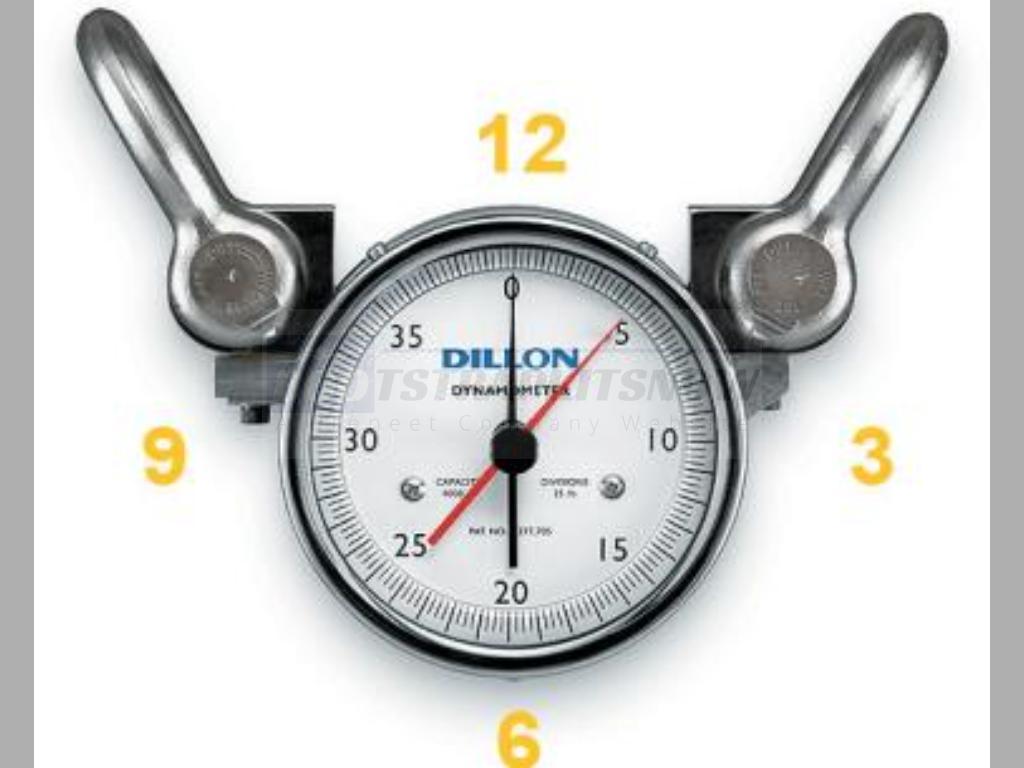

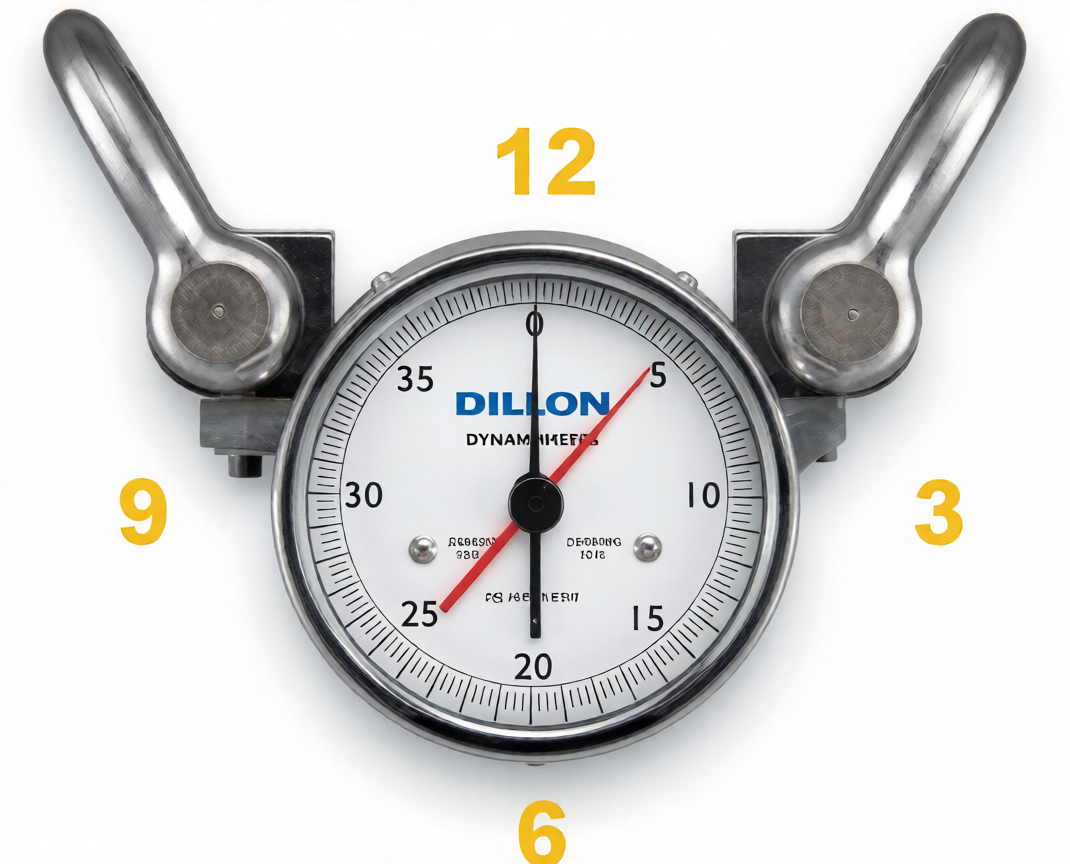

  • Nonstandard Zero positioning
    Capacities up to 20,000 lb can be supplied with the zero at 12, 3 or 6.

Swipe right to see more Images

AP Dynamometer
AP Dynamometer
AP Dynamometer
AP Dynamometer
AP Dynamometer
AP Dynamometer

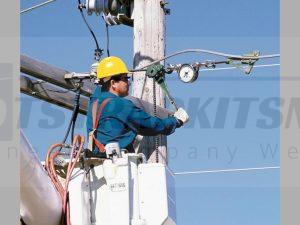

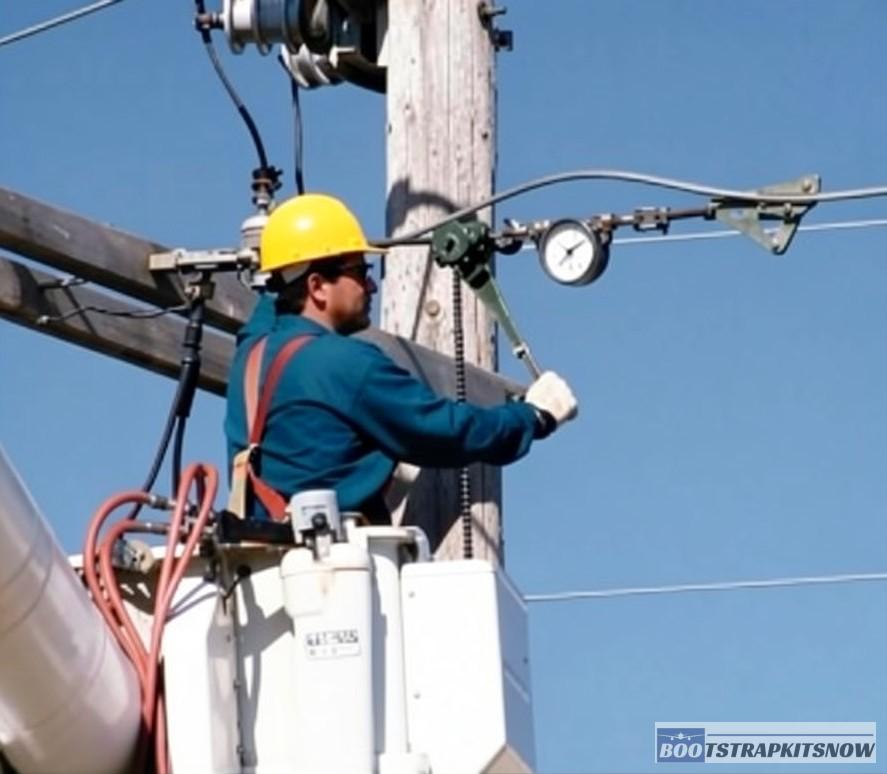

Utility Lines
Utility Lines

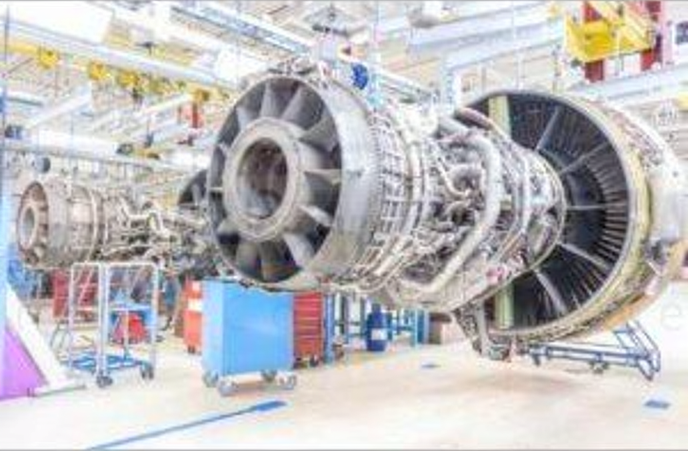

Airplane Engines
Airplane Engines

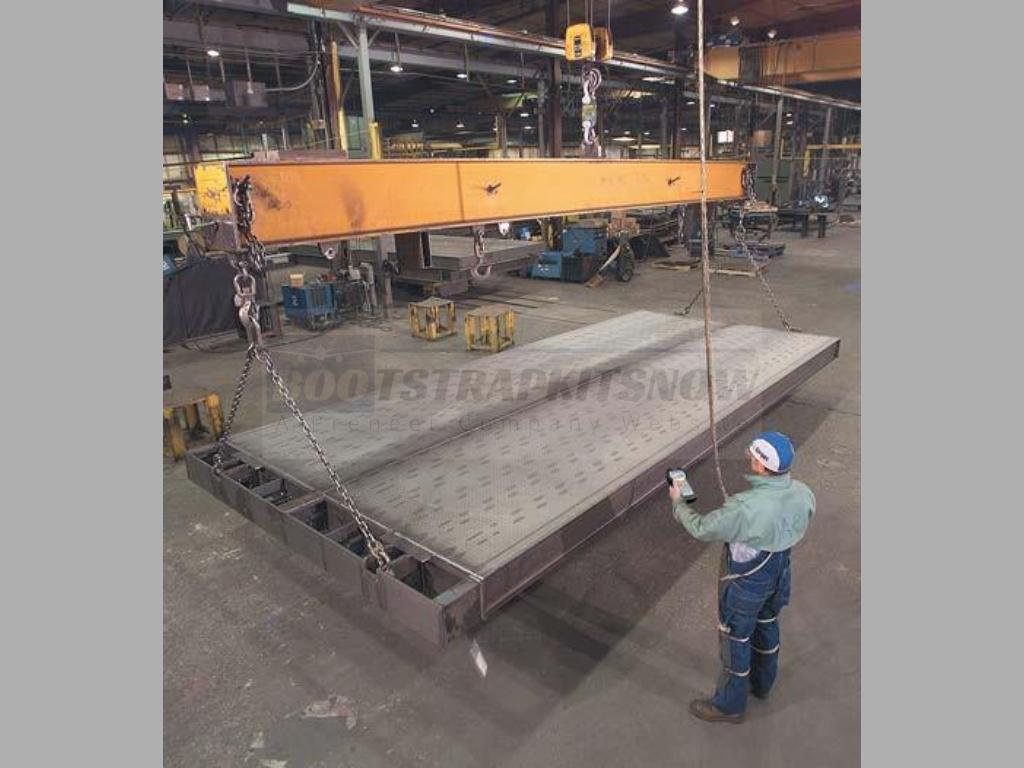

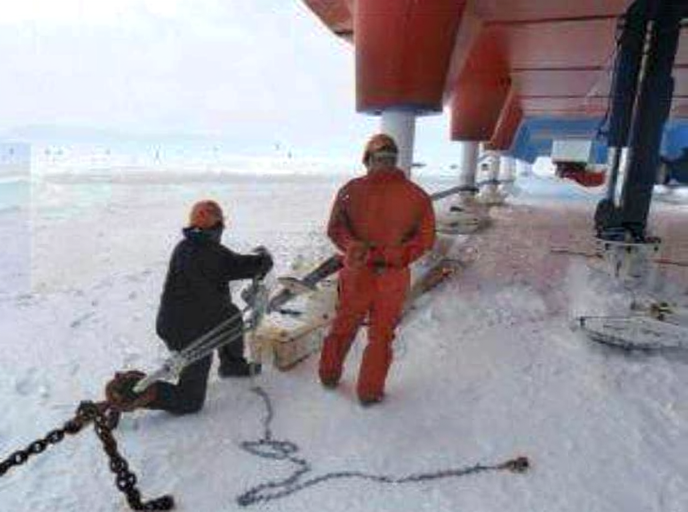

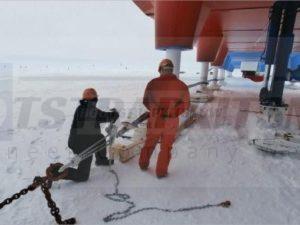

Load Monitoring
Load Monitoring
Standard Zero positioning
Standard Zero positioning
Nonstandard Zero positioning
Nonstandard Zero positioning

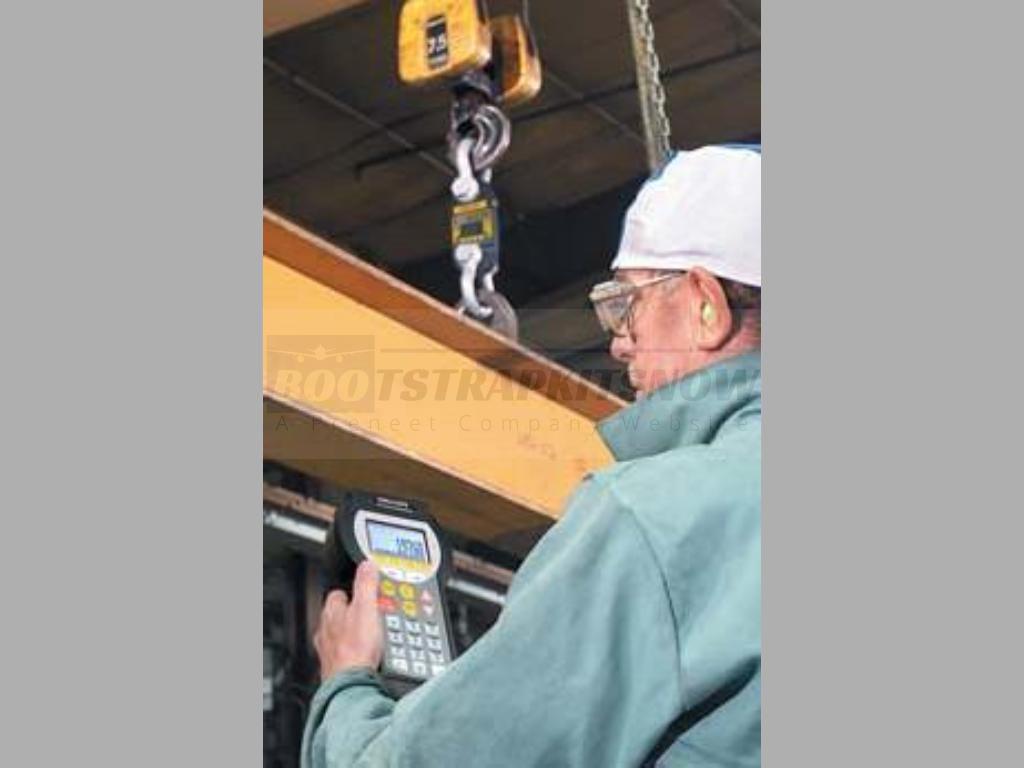

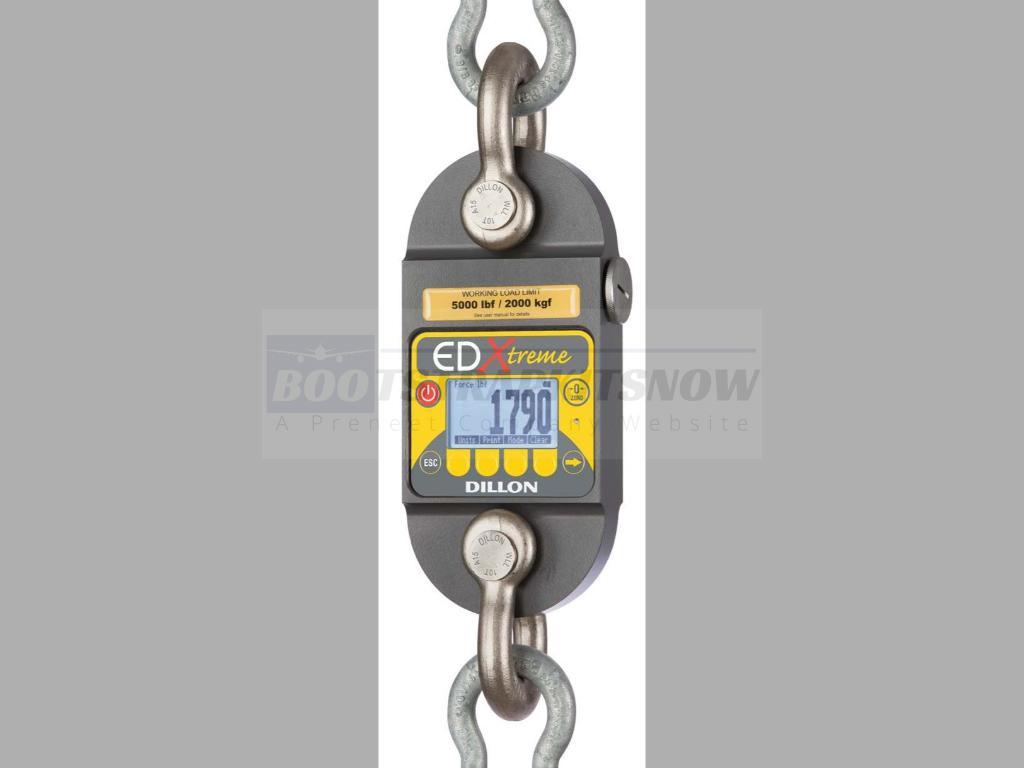

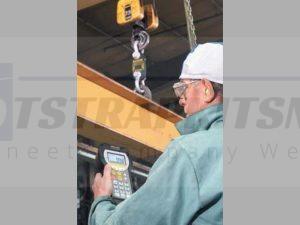

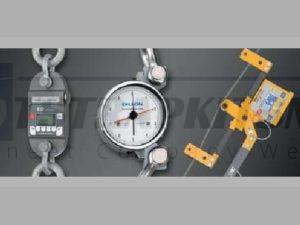

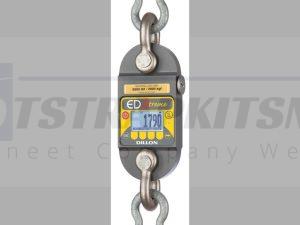

EDXtreme Dynamometer

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premiumgrade materials to achieve a 5:1 minimum factor of safety.

Features

  • Dramatically improved battery life in the EDXtreme link.
  •  Dramatically improved radio communications distance.
  •  High speed Peak Capture 10/100/1,000 Hz.
  • Improved backlight intensity.
  • Lift and store of weight / force.
  • Date and time.
  • Continuous data storage.
  •  Re-calibration reminder.
  •  Can communicate with two Communicators via radio.
  •  Overload at 120% with date and time record.

Uncompromising on Safety and Adaptable to the need

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premiumgrade materials to achieve a 5:1 minimum factor of safety.*

While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location — it is the definition of application versatility.

* Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.

EDXtreme Dynamometer

Specifications

  • Capacity & Resolution

Model* Capacity x Resolution (normal/enhanced) Overload+ Construction
EDx–1T (EDx-2.5K )
2,500 lbf x 2/0.5 ,1,000 kgf x 1/0.2,10,000 N x 10/2
700%
Aircraft-quality 2024 aluminum
EDx–2T (EDx-5K)
5,000 lbf x 5/1, 2,000 kgf x 2/0.5, 20,000 N x 20/5
700%
Aircraft-quality 2024 aluminum
EDx–5T (EDx-10K)
10,000 lbf x 10/2, 5,000 kgf x 5/1, 50,000 N x 50/10
700%
Aircraft-quality 2024 aluminum
EDx–10T (EDx-25K)
25,000 lbf x 20/5,10,000 kgf x 10/2, 100,000 N x 100/20
500%
Aircraft-quality E4340 alloy steel
EDx–25T (EDx-55K)
55,000 lbf x 50/10, 25,000 kgf x 20/5, 250,000 N x 200/50
500%
Aircraft-quality E4340 alloy steel
EDx–50T (EDx-100K)
100,000 lbf x 100/20, 50,000 kgf x 50/10, 500,000 N x 500/100
500%
Aircraft-quality E4340 alloy steel
EDx–75T (EDx-160K)
160,000 lbf x 100/50, 75,000 kgf x 50/20, —
400%
Aircraft-quality E4340 alloy steel
EDx–100T (EDx-220K)
220,000 lbf x 200/50, 100,000 kgf x 100/20, —
400%
Aircraft-quality E4340 alloy steel
EDx-150T (EDx-330K)
330,000 lbf x 200/100, 150,000 kgf x 100/50, —
400%
Aircraft-quality E4340 alloy steel
EDx-250T (EDx-550K)
550,000 lbf x 500/200, 250,000 kgf x 200/50, —
400%
Aircraft-quality E4340 alloy steel

* Model number in parenthesis shows U.S. convention for describing capacities.
+ Ultimate overload protection rating.

  • Dimensions inches (mm)

Model A B C D E F G H J Shackle
EDx–1T
10.6 (269)
5.0 (127)
7.8 (198)
1.06 (26)
0.75 (19)
15.3 (389)
13.4 (340)
1.36 (34)
1.69 (43)
Dillon
EDx–2T
10.6 (269)
5.0 (127)
7.8 (198)
1.06 (26)
0.75 (19)
15.3 (389)
13.4 (340)
1.36 (34)
1.69 (43)
Dillon
EDx–5T
11.4 (289)
5.3 (135)
8.1 (206)
1.46 (37)
1.00 (25)
17.5 (444)
15.7 (400)
2.17 (55)
2.28 (58)
Green Pin*
EDx–10T
11.5 (291)
5.3 (133)
7.9 (201)
2.01 (51)
1.38 (35)
21.0 (534)
18.5 (470)
3.50 (89)
3.25 (83)
Green Pin*
EDx–25T
13.7 (348)
6.0 (152)
9.0 (229)
2.91 (74)
1.97 (50)
28.7 (730)
25.2 (640)
5.70 (146)
4.96 (126)
Green Pin*
EDx–50T
15.8 (400)
6.8 (172)
10.3 (262)
4.13 (105)
2.75 (70)
38.8 (986)
33.7 (856)
8.98 (228)
7.09 (180)
Green Pin*
EDx–75T
16.5 (419)
7.8 (197)
10.3 (262)
4.13 (105)
2.75 (70)
39.3 (998)
33.7 (856)
8.58 (218)
7.09 (180)
Green Pin*
EDx–100T
18.0 (457)
7.8 (197)
11.0 (280)
5.00 (127)
3.25 (83)
46.9 (1191)
40.4 (1025)
11.14 (283)
7.48 (190)
Green Pin*
EDx-150T
21.0 (533)
8.8 (222)
12.6 (321)
5.25 (133)
3.75 (95)
53.9 (1368)
45.6 (1159)
12.3 (313)
9.0 (229)
Crosby
EDx-250T
27.0 (686)
9.8 (248)
17.5 (445)
8.5 (216)
5.00 (127)
75.8 (1925)
62.8 (1595)
17.9 (454)
13.0 (330)
Crosby

* Dimensions using Green Pin shackles. Crosby shackles available. Consult factory for dimensions

For the Toughest Jobs you Face

Xtreme Engineering

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDXtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

  • Superior strength and corrosion resistance: High capacity models are constructed of powder coated aircraft-quality alloy steel. Lower capacity models are powder coated aircraft-quality aluminum.
  •  5:1 factor of safety* : This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDXtreme design.
  • Retained hardware: Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
  • NEMA 4X/IP55:  The EDXtreme is clearly the choice for reliability in any environment – in-plant or out on the job site.
  • CE : Approval on all capacities excluding 550K.

Xtreme Accuracy: 0.1%

High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDXtreme meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity*.The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.

Xtreme Ease

  • Exclusive SOFTKEY interface: Dillon has eliminated confusing menus for faster setup and simple operation. In addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurement.
  •  Wide-angle, backlit LCD: Provides improved readability
    over a wider viewing angle and has backlighting for low
    light conditions.
  • Battery operation: The EDXtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

* Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy

Swipe right to see more Images

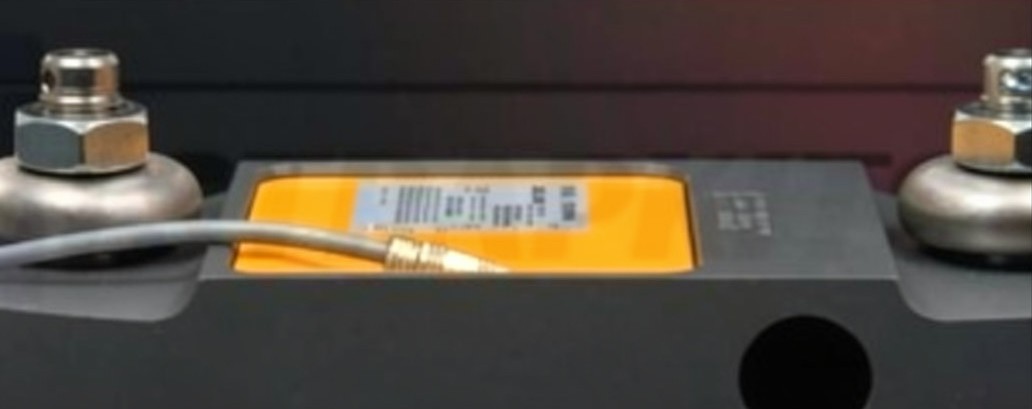

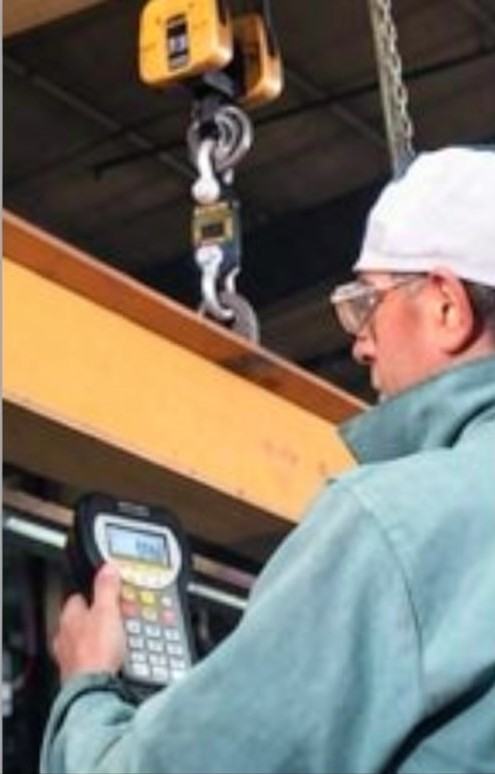

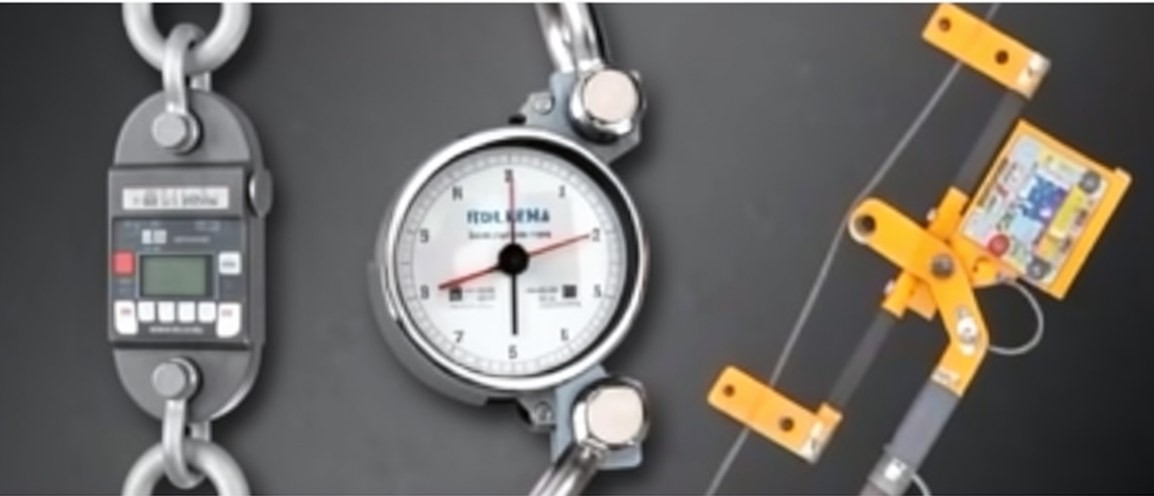

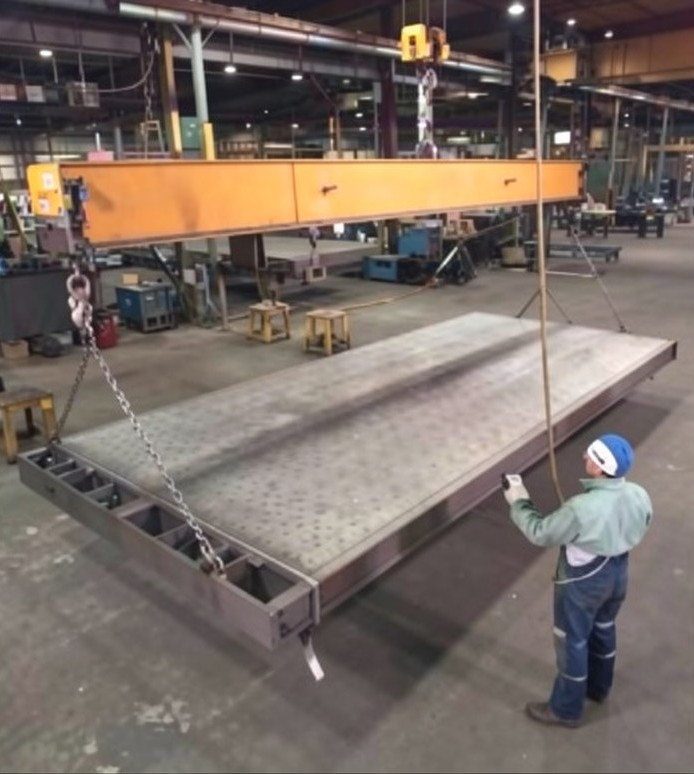

EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
EDXtreme Dynamometer
